Soldering Paste
Product Introduction

Hongfeng has a series of independently developed welding pastes, suitable for air brazing (induction welding, resistance welding, etc.) and vacuum brazing under various conditions, mainly including silver-based welding paste, copper-based welding paste, nickel-based welding paste, aluminum-based welding paste, etc.

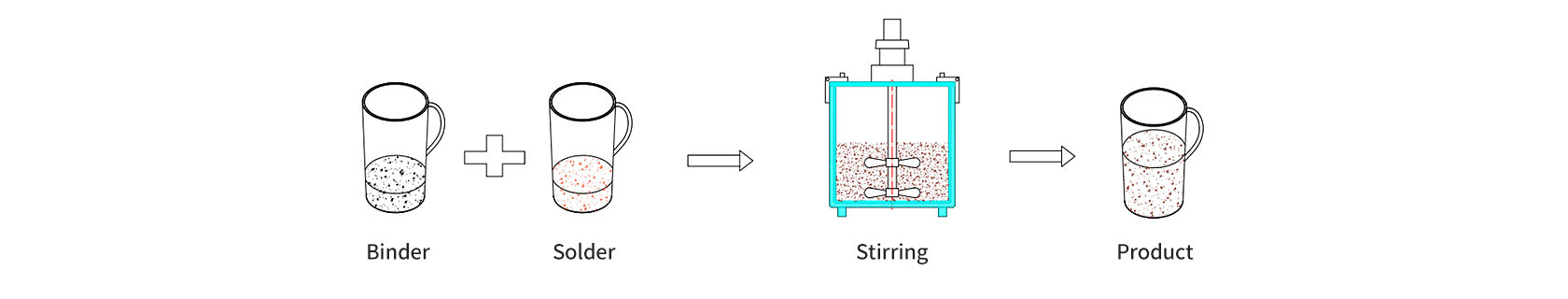

Manufacturing Process


Product Category

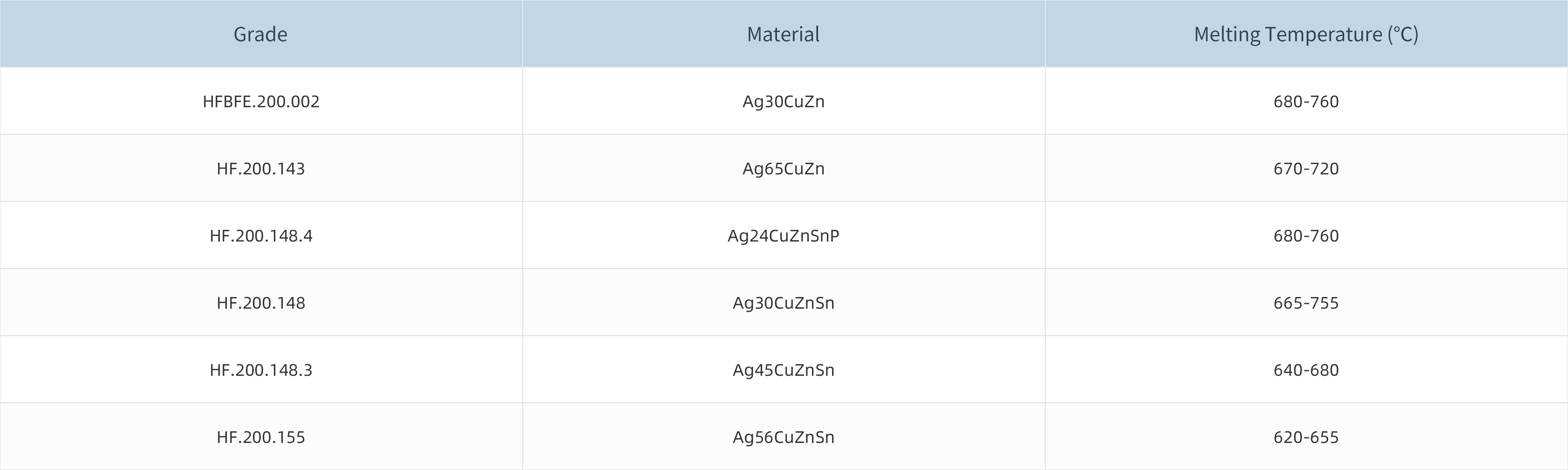

Ag-based soldering paste

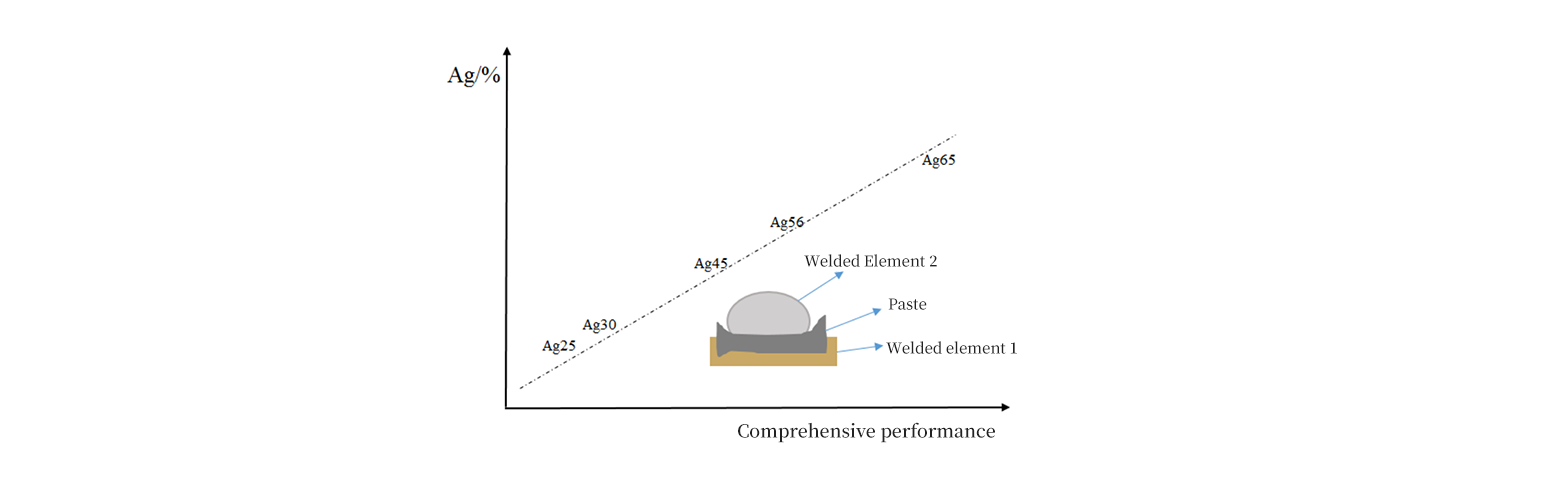

Product Performance

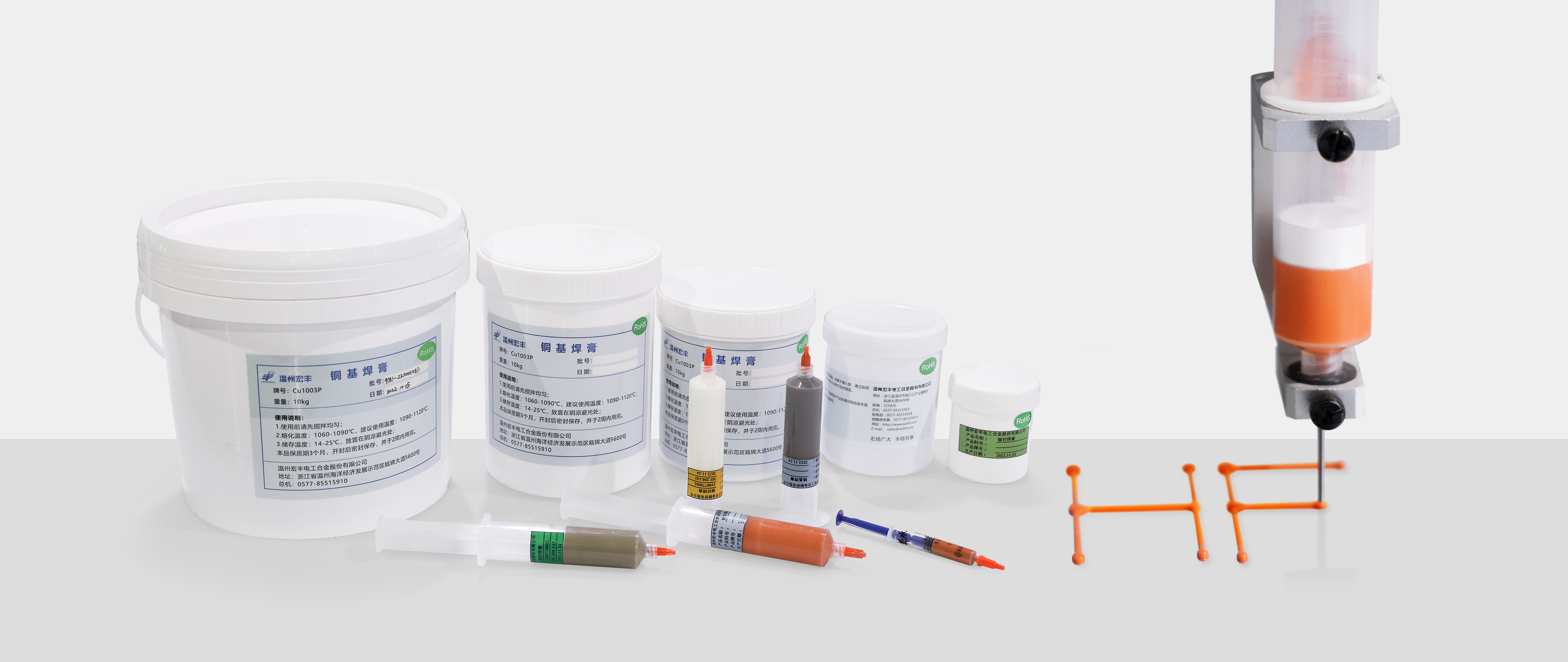

The above products are available in 30cc needle cartridges and 1KG cans.

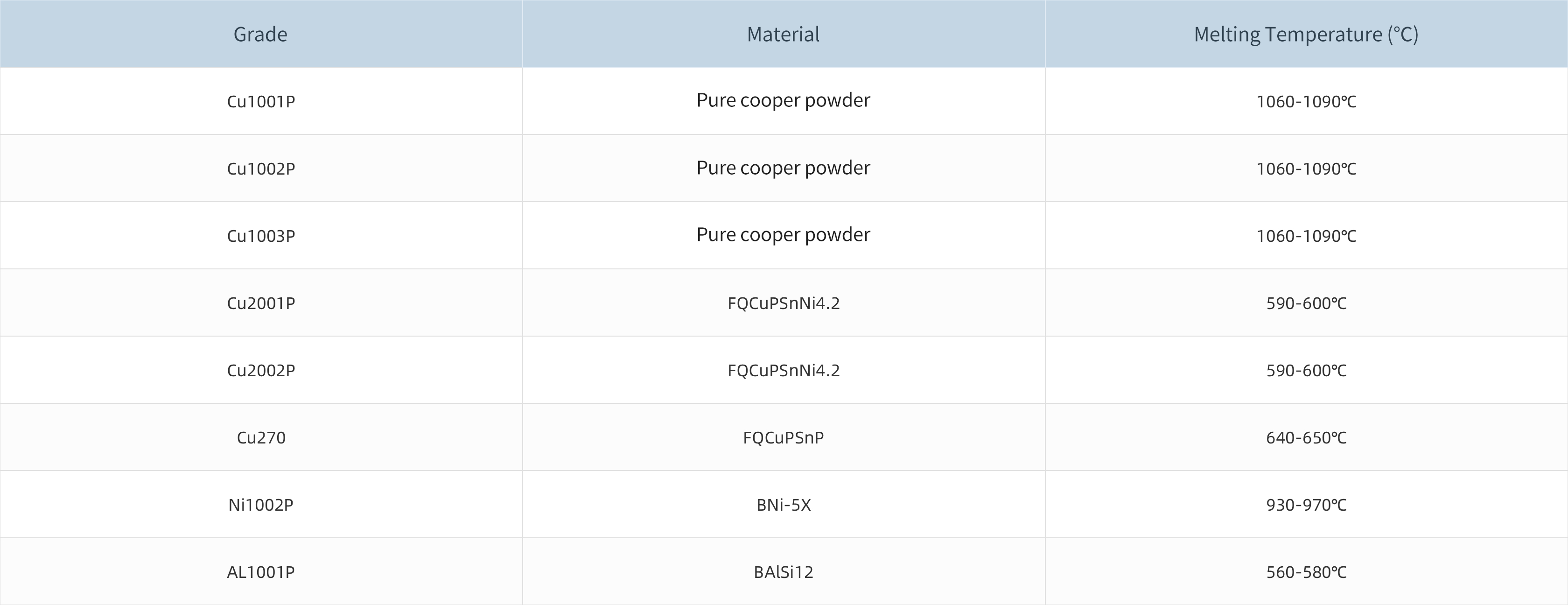

Cu-based soldering paste
Cu1003P

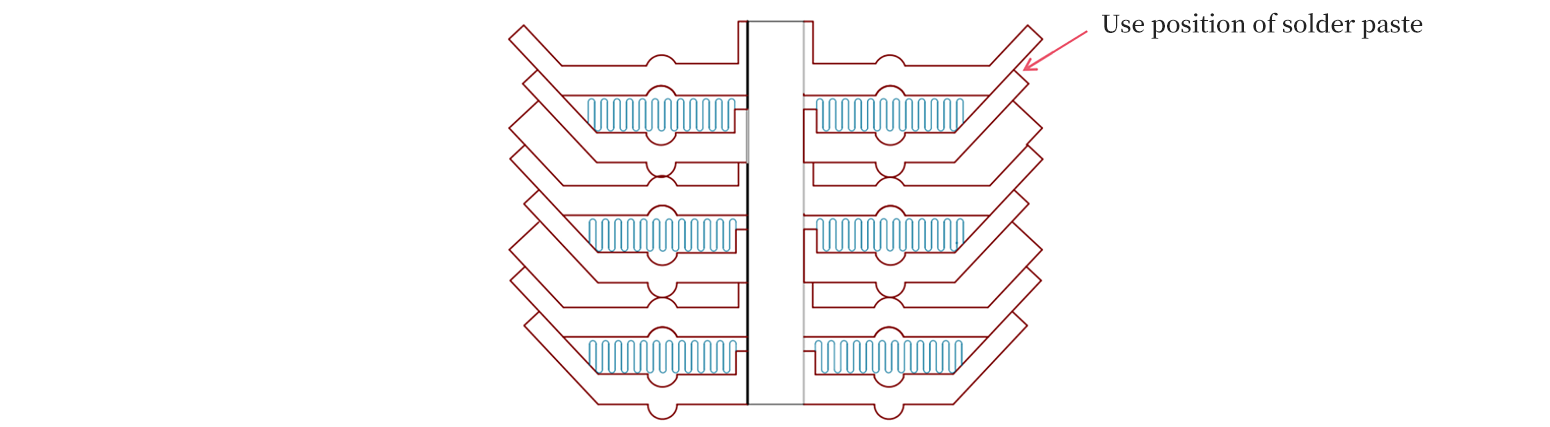

There is less spreading during brazing and good adhesion during high-temperature brazing. Thus, it is applicable to vacuum brazing of stainless steel with higher melting point and brazing in furnace under protective atmosphere, such as brazing of heat exchanger.




Cu2002P

It is applicable to copper alloy brazing with lower meting point requirements, such as brazing of VC copper plate in electronic products.


Ni-based soldering paste
Ni1002P

It is used for corrosion and high temperature resistant base metal brazing, such as oil cooler, electric heat tube, etc.




Al-based soldering paste
AL1001P

It is applicable to 3-series aluminum brazing, such as automobile oil coolers, home appliance support structures, building materials, etc.





The above products are available in 30cc syringe, 1KG, and 10KG cans.
